PA2801 PA2802 Power Analyzers

Models PA2801 and PA2802 Harmonic & Power Analyzers

Single Phase Harmonic & Power Analyzers, 1 or 2 channels

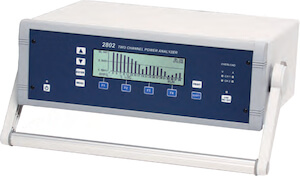

pa2801 pa2801 power analyzers



PA2801 PA2802 Datasheet Download

PA2801 PA2802 User Manual Download



 With an extended measurement range from micro-amps to hundreds of amps and milli-volts to kilovolts, the Lexcom PA2801 and PA2802 are ideal power analyzers and harmonic analyzers for appliance testing, standby power or Energy Star conformance testing. High speed digitization of voltage and current allows accurate power analysis of both clean and distorted power signals. Our harmonics & power analyzer’s graphical display includes numeric results, voltage and current waveform plots along with settings. Measurements can be displayed or read on our power analyzer via the communication ports; RS-232, GPIB, USB, and Ethernet, or sent directly at full resolution to a USB printer.

PA2801 and PA2802 Harmonics & Power Analyzer Features:

  • Accurate with all AC/DC waveform types
  • High performance-to-cost ratio
  • Measures, W, VA, VAr, V, A, PF crest factors and harmonics
  • Base accuracy <0.08%. Current and voltage accuracies specified to less than 1mArms and 1Vrms respectively (<0.2%)
  • 2000Vpk and 150Apk measurable internally (external current probe capable)
  • Integrated line switch and inrush waveforms
  • Graphics display shows numerical results, waveforms, bar graphs, startup & history charts with zoom & scroll features
  • Wiring loss and voltage burden compensation
  • Harmonic Analysis
  • DC charge and discharge measurements
  • Frequency Range: DC and 20mHz – 200kHz
  • Communications ports include USB, GPIB, and RS-232 standard, plus optional Ethernet*
  • USB Flash drive support for data logging*
  • Provides PASS/FAIL tests to user limits*

*Planned Power Analyzer features coming soon



pa2801-pa2802
PA2801 PA2802 power analyzer rear panel input connection and interfaces



MEASUREMENT FUNCTION – PA2801/PA2802 Power Analyzer
Measurement Bandwidth Range DC, 0.02Hz to 200kHz
VOLTS Vrms

Refer performance graphs operation manual
Display Resolution: 5 digit
Measurement Range:
700mVrms to 850Vrms (2000Vpk)
(200mVrms with display blanking off)
Vpeak Ranges: 850V (2000Vpk), 450V (675Vpk), 135V (200Vpk), 50V (80Vpk), 20V (30Vpk)
Max input volts: 2000Vpk
Accuracy:
0.08% Reading + 0.1% Range 0.04%/kHz
DC 0.2% Reading +0.2% Range + 10mV
Common Mode: 90dB
Input Impedance: 1Mohm 10pF
Current Arms

Refer performance graphs operation manual
Display Resolution: 5 digit
Measurement Range:
0.01Arms to 30Arms (150Apk)
Transducer (Ext Shunt) input 2mVpk to 15V (35Vpk). Max input 70Vrms
Amps Ranges: 65A (150Apk), 20A (50Apk), 6.5A (15Apk), 2A (5Apk), 0.65A (1.5Apk), 300mA (800mApk), 100mA (250mApk), 30mA (80mApk), 10mA (25mApk)
Max input amps: 30Arms continuous 150Apk
Accuracy:
0.09% Reading + 0.1% Range 0.05%/kHz
DC 0.2% Reading + 0.2% Range
Common Mode: 90db
Input impedance: 0.015 Ohm – 650mA-65A
0.3ohm – 10mA-300A
Power active power watts Accuracy: 0.1% Reading + 0.1% Range
VA apparent power Accuracy: 0.1% Reading + 0.1% Range
VAR reactive power Accuracy: 0.1% Reading + 0.1% Range

GENERAL SPECIFICATIONS – PA2801/PA2802 Power Analyzer
Interfaces
Standard: USB, GPIB, and RS-232 standard
Optional: Ethernet with RS232/Ethernet adapter
Environment
Operating Temperature: 0° to +55° C
Storage Temperature: -20°C to +70°C
Humidity: 10% to 90% RH non-condensing
Dielectric Strength
Inputs to case: 2kV AC 50/60Hz for 1 minute
AC line input to case: 2kV AC 50/60Hz for 1 minute
Power
AC line input voltage: 90V to 264V
AC line input frequency: 45Hz to 450Hz
AC line input fuse: 20mm 1AT
Power Consumption: 14W/28VA
Mechanical
Weight: 7.5lbs (3.4kg)
Dimensions (W x H x D): 13.8in x 4.7in x 9.5in
(35.05cm x 11.94cm x 24.13cm)

Models PA2801 and PA2802 Wattmeters
Display Screenshots



pa2801-pa2802-main-menu

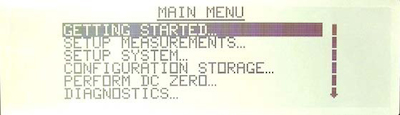

Main Menu		 pa2801-pa2802-measure-config
Measurement Configuration
pa2801-pa2802-inrush

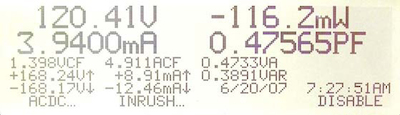

Inrush		 pa2801-pa2802-harmonics-log

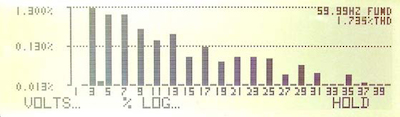

Harmonics Log
pa2801-pa2802-real-time-waveform

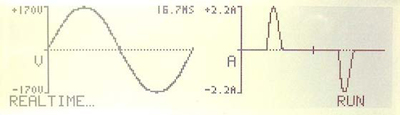

Real-time Waveform		 pa2801-pa2802-distortion

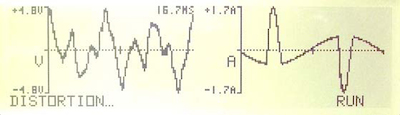

Distortion
pa2801-pa2802-history

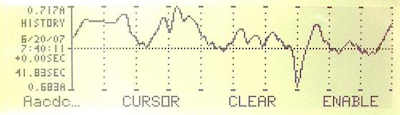

History of Amps Inrush		 pa2801-pa2802-startup

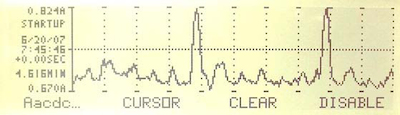

Startup



power-switch
PA Power Switch
Allows safe convenient switching between phases



PA2801 PA2802 Datasheet Download    PA2801 PA2802 User Manual Download

CE marked
If you have any queries regarding PA2801 or PA2802 power analyzers or require specifications outside our standard ranges please do not hesitate to contact us.
